Overview

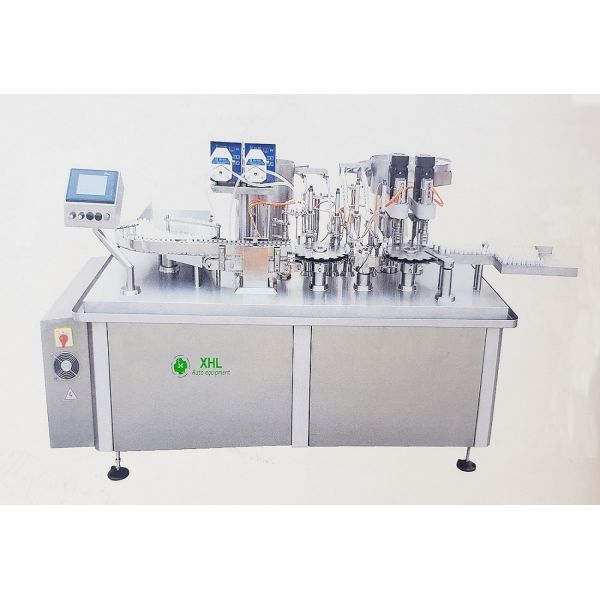

YG2/80 eye drop filling rotary cap machine is a new product
developed by our company in recent years. Peristaltic pump
measurement and filling is controlled by computer. With automatic
filling, automatic injection, capping, capping and other functions.
Is a new generation of eye drops in the pharmaceutical industry
production equipment. The machine can also be used for filling,
stoppering, capping and small dose liquid labeling in other
industries.
Features
-Computer set, filling quantity is precise, easy to operation
-Peristaltic pump fill, easy to clean, sterilize, no pollution
-Set filling dosage without stopping machine.
-No bottle no fill, no bottle no stopper insertion. No stopper no
cap placing.
-Filling system has the function of shrinking, no drop leakage.
-No bottle no fill. no bottle no stopper place, no stopper no cap
placing.
-Auto metering, can adjust the speed freely.
-Adopt manipulator to auto add inside stopper, press outside cap.
-Default torque rotating cap, the quality of rotating-cap is
reliable, no loose.
-One machine auto finish filling, adding inside-stopper, pressing
outside cap and rotating plastic cap firmly.
-The whole machine is designed according to the GMP requirements.
Main Technical Parameter
| Applied bottle range: | 2-50ml | Production capacity: | 80~120 bottles per minute |
| Filling heads: | 2 | Tolerance of filling error: | ≤±1% |
| Qualified ratio of cap turning: | ≥99% | Power supply: | 220V 50Hz |
| Speed control: | Frequency variable speed adjustment | Power consumed: | 1.2kw |
| Compressed air: | 25-35L/min, 0.4~0.6MPa | Single machine noise: | ≤70dB |
| Weight: | 700kg | Overall dimension(mm): | 2080*960*1480
|
About us
-Listed company founded in 2003(WINLONG GROUP CORPORATE)
-17 years’ manufacturing experience in the aseptic filling
production line.
-Exclusive manufacturing factory of 20,000 square meters
(Changzhou, Jiangsu)
-More than 100 famous enterprise business partners across China.
-Expanded global business network
-Proven design, efficient and reliabile products.
-Customized design to meet the customer’s demand.
Our Services and Warranty
1.We can customize the machine as customer required.
2.Available for OEM/ODM service.
3.Offer living broadcast or video support.
4.To Door installation and training service.
5.Offer filling line solution with customer requirement.
6.Customer’s design are welcomed.
7.Competitive price with on-time delivery.
8.Main spare parts one year warranty ( personal damaged except ).
We can customize with your packaging materials, production capacity
and demands.
We will provide you with associated design solutions and case
videos.
